I had to patch the Linux kernel to wake my PC using a browser, again

In 2022 I patched the Raspberry Pi kernel so TinyPilot could wake my sleeping PC over USB. Since then, the setup changed. I wanted to upgrade my Raspberry Pi to a Pi 5 (16 GB of RAM!), but TinyPilot didn’t support it. So I replaced TinyPilot with a JetKVM, a dedicated KVM-over-IP device that doesn’t need a Raspberry Pi. The Pi 5 now runs other things.

JetKVM already had a Wake-on-LAN button, and I set up nginx in front of it for remote access and automated WoL¹. But when I bought it, it couldn’t wake my PC over USB, the same way a real keyboard would. Other people had reported the same problem in jetkvm/kvm#120. Since I’d already dealt with this on the Pi, I figured I should try porting the fix.

The setup

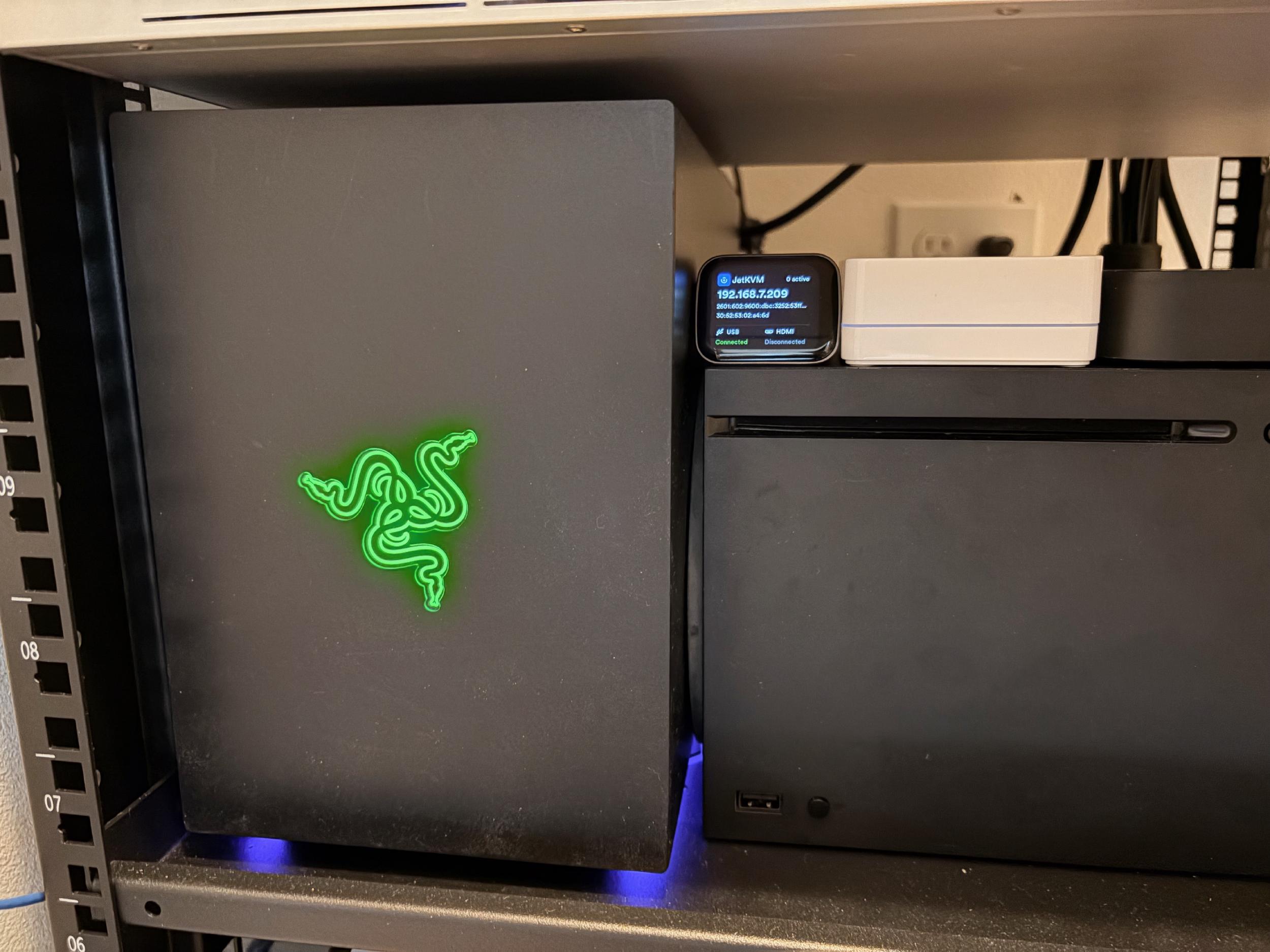

The PC in question is “Tomahawk,” a Windows 11 desktop that lives in my media closet and sleeps after 30 minutes of inactivity. JetKVM connects via HDMI (through a DP-to-HDMI adapter) and USB-C, giving me a browser-based remote desktop. When the PC was awake, it worked great. When it slept, JetKVM showed “No HDMI signal detected” and every keystroke I sent disappeared.

A real USB keyboard could wake Tomahawk. I wanted JetKVM’s emulated keyboard to do the same.

Why it didn’t work

The USB HID gadget driver (f_hid) in JetKVM’s kernel didn’t ask the USB controller to send a remote wakeup signal before writing HID reports. Sending a keystroke to /dev/hidg0 wasn’t enough: with the host asleep and the USB bus suspended, the controller first needed to signal the host to resume.

This was the same missing piece I’d hit with TinyPilot. The HID patch makes the driver call usb_gadget_wakeup() before each write when a configfs flag (wakeup_on_write) is set. But the USB controller underneath it was different.

DWC3 vs DWC2

My TinyPilot ran on a Raspberry Pi 4, which uses the Synopsys DWC2 USB controller. JetKVM runs on a Rockchip RV1106, which uses DWC3. That meant a different controller driver and a different wake implementation.

DWC3 already had a wake callback wired up. For TinyPilot, I had used @mdevaev’s PiKVM patch to fix the DWC2 wake helper as well as the HID driver (my preserved copy). On JetKVM, dwc3_gadget_wakeup was already there. The HID write path just wasn’t calling it.

JetKVM’s 5.10.160 kernel didn’t have the PiKVM wakeup_on_write addition, so I needed to port that part.

In my initial implementation, a browser keystroke would take this path to wake the host from S3 sleep²:

sequenceDiagram
    participant Browser
    participant Go as JetKVM Go App
    participant HID as f_hid kernel driver
    participant DWC3 as DWC3 USB Controller
    participant Host as Sleeping PC

    Browser->>Go: keystroke
    Go->>HID: write to /dev/hidg0
    Note over HID: wakeup_on_write = 1
    HID->>DWC3: usb_gadget_wakeup()
    Note over DWC3: Write Recovery to DCTL
    DWC3->>Host: USB resume signal
    Note over Host: xHCI detects resume
    Host-->>Browser: Windows wakes from S3

That required two changes:

1. Kernel (f_hid.c): Add the wakeup_on_write configfs attribute, call usb_gadget_wakeup() in f_hidg_write() when it’s set
2. JetKVM Go app: Set bmAttributes = 0xa0 (advertise remote wakeup capability) and wakeup_on_write = 1 on all three HID functions (keyboard, absolute mouse, relative mouse)

The patches were small. Getting them tested took an entire Saturday.

Building and testing the patch

I started by re-reading my own blog post from 2022. Port the wakeup_on_write patch, set the configfs attributes, done. Seemed straightforward.

I cloned jetkvm/rv1106-system on my build VM, ran install.sh to set up the ARM cross-compile toolchain, and wrote the patch. The f_hid changes were nearly identical to the PiKVM version. Build took about 8 minutes. I flashed the boot partition via SSH³, rebooted JetKVM, deployed the updated Go app with wakeup_on_write: "1", and ran the test:

echo -ne '\x00\x00\x2c\x00\x00\x00\x00\x00' > /dev/hidg0

Nothing happened. Tomahawk stayed asleep.

The DWC3 polling loop

I dug into dwc3_gadget_wakeup(). After requesting Recovery, the driver polls for the USB link to return to U0 (active). The loop in JetKVM’s kernel looks like this:

retries = 20000;
while (retries--) {
    reg = dwc3_readl(dwc->regs, DWC3_DSTS);
    if (DWC3_DSTS_USBLNKST(reg) == DWC3_LINK_STATE_U0)
        break;
}

If the link hasn’t reached U0 by the end of those 20,000 reads, the function logs “failed to send remote wakeup” and returns -EINVAL. I saw that message and suspected the polling was the problem.

Newer upstream code had made gadget wakeup asynchronous, specifically because polling could finish before the link became active. I tried removing the polling from my build: request Recovery through DCTL and return success.

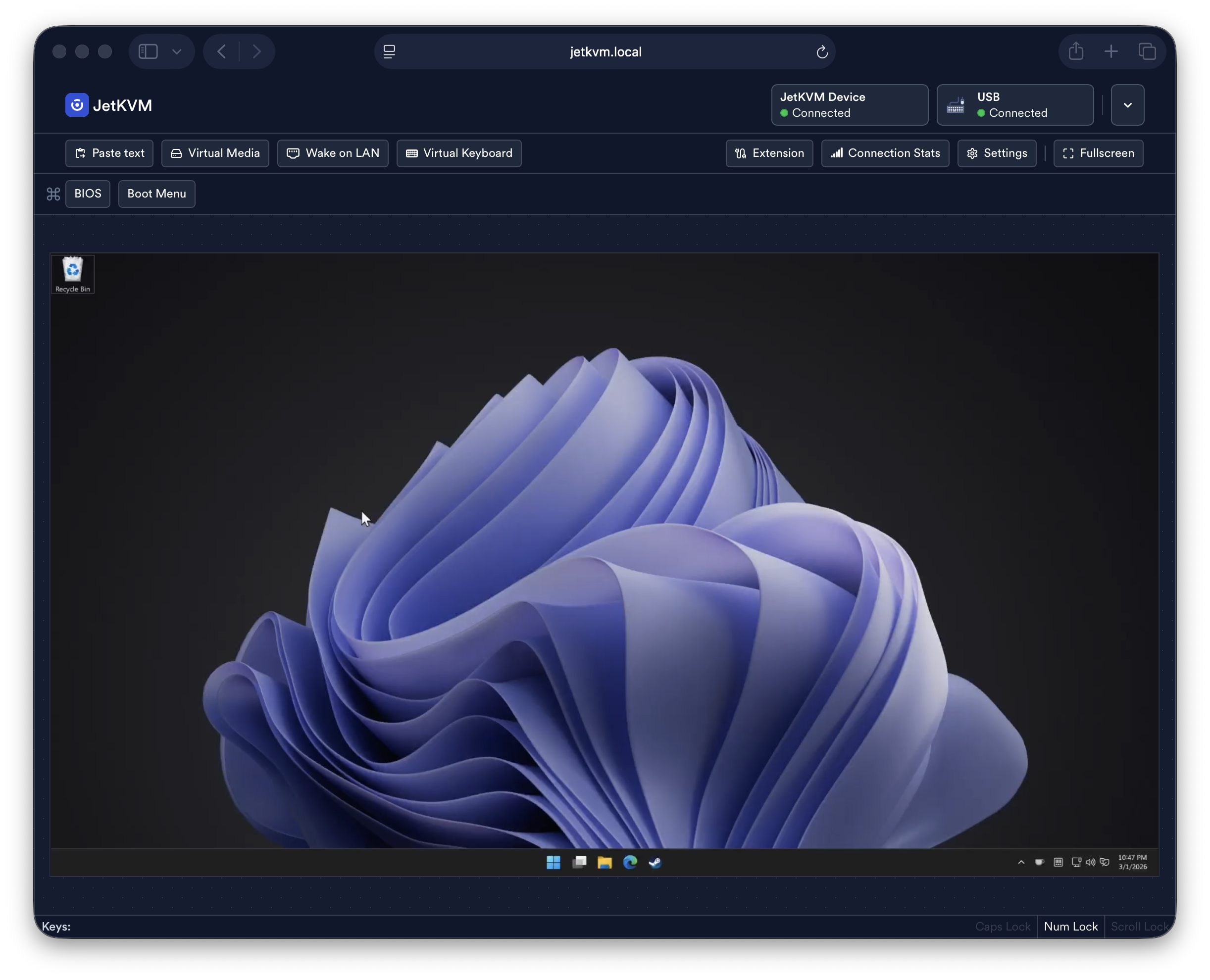

Build #5 (both patches together): it works. Tomahawk wakes up. About 14 seconds from HID write to the host being reachable.

Isolating the fix

I wanted a minimal PR, so I tested build #6 with only the f_hid patch and stock DWC3 code. It failed. Tomahawk stayed asleep. At that point I figured both patches were required.

But something didn’t quite add up. The polling loop writes Recovery to DCTL before it starts polling. The resume signal is already on the wire by the time the loop begins. The poll just waits for the host to acknowledge. Why would removing the acknowledgment check be necessary for the signal to work?

I looked at the JetKVM’s USB state more carefully:

cat /sys/kernel/config/usb_gadget/jetkvm/UDC_state
# not attached

The USB wasn’t even connected. I had toggled the UDC for re-enumeration right before putting Tomahawk to sleep, and Windows entered S3 before USB finished re-enumerating. Build #6 didn’t fail because of the DWC3 polling loop. It failed because there was no USB connection at all.

Build #8 (f_hid only, stock DWC3, clean USB state): works. 4.2 seconds.

That run was faster than build #5 with my DWC3 change (14.4s → 4.2s), though these tests don’t establish why. What mattered was that the stock DWC3 driver could wake the host once I gave it an attached USB device.

I still got two “failed to send remote wakeup” messages in dmesg, but the PC woke anyway. In these tests, the error didn’t mean no wake signal had been sent. I dropped the DWC3 change from the PR.⁴

Results

These measurements are from my original keyboard-triggered implementation, not the dedicated wake button JetKVM later shipped.

Raw USB wake time (SSH to JetKVM, write to /dev/hidg0)

I measured from HID write completion to the first successful ping response from the host. Before each run, I put the PC to sleep and checked that it had stopped responding to pings.

The PC was reachable again about four seconds after the write completed. This measures recovery to a ping response, not the duration of the USB wake signal itself.

powercfg /lastwake reported the USB host controller each time:

Wake Source [0]:
  Type: Device
  Friendly Name: Intel(R) USB 3.1 eXtensible Host Controller

End-to-end via JetKVM web UI

Measured from keypress in the browser to first video frame playing. I instrumented this with JS polling video.currentTime every 50ms, detecting when the WebRTC video stream advances from its frozen state.

Video took about 22 seconds longer to return than a ping response. I suspect much of that was the GPU and HDMI output coming back on this machine (Intel Z390 + NVIDIA GPU), but these measurements don’t separate that from JetKVM’s capture and streaming startup.

One caveat

In my tests, USB wake only worked if JetKVM had been enumerated by the host before it entered sleep. If JetKVM rebooted while the PC was already in S3, the USB device controller reported “not attached” and I couldn’t wake it over USB. I still keep Wake-on-LAN available for that case.

The PRs

I opened three PRs to make this work upstream:

1. jetkvm/rv1106-system#57: kernel f_hid wakeup_on_write patch — merged and shipped in system 0.2.8
2. jetkvm/kvm#1235: Go app bmAttributes=0xa0 + wakeup_on_write=1 — merged and shipped in app 0.5.5

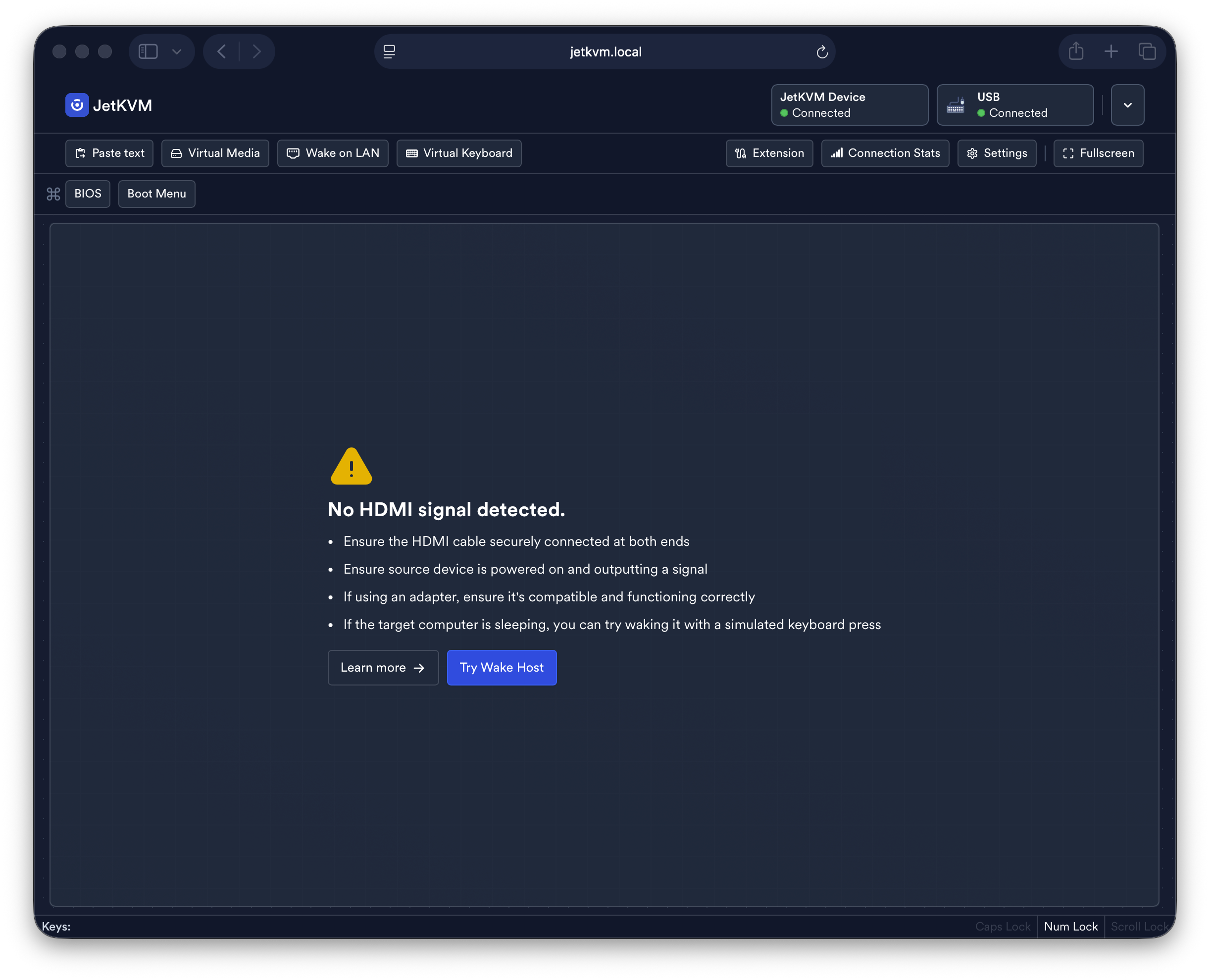

3. jetkvm/kvm#1236: my “Try Wake Host” button for the no-signal overlay — closed without merging

The Go app change shipped first in app 0.5.5 on March 31, 2026. The kernel patch merged a few days later and reached production in system 0.2.8 on April 28. At that point USB wake worked out of the box, although there was not yet an obvious control for it in the web UI.

The JetKVM team added end-to-end S3 suspend/wake tests in app 0.5.6, then implemented explicit USB wake control for app 0.5.9. Their version adds a dedicated wake-only HID function and a Try to wake button to the no-signal overlay. Regular keyboard and mouse reports no longer wake a suspended host; only the explicit button does. That is cleaner than my proposed button, which would have sent a spacebar press through the normal keyboard device, and it avoids accidental wakes from stray browser input.

Thanks to @mdevaev for the original PiKVM patch, and to the JetKVM team for merging the kernel and app changes and adding the wake button. This time I don’t have to keep running my own kernel build.
